GuiLite is the smallest GUI library with 5000 lines of C++ code, it runs on all platforms(e.g, iOS, Android, Linux, Windows, macOS, Docker and MCU with or without OS).
GuiLite is embeddable, it runs inside other UI frameworks(e.g, Qt, MFC, Winform, Cocoa). You could use GuiLite features and host UI features simultaneously.
GuiLite render UI by itself, independent of OS & Graphic library.
GuiLite could work with many languages(e.g. Swift, Java, C#, Golang).
🔧We want people to customize GuiLite.
⚙️We hope GuiLite is small enough to help you understand how UI works.
👑You should be the master of your UI and not be tied to a specific framework.

🔥New feature：GuiLite previewer(WYSIWYG extension for GuiLite)

GuiLite Previewer is a Visual Studio Code extension, could extract GUI information from C++ code and preview GUI at preview page(What you see is what you get)
No need for drag-and-drop widgets, everything (e.g. code/design/build/debug) could be done by coding
No need for special GUI editor(e.g. Android Studio, Qt designer)
No need for Extensible Markup Language(e.g. xml, xaml)

Features

ARM Linux	STM32 Without OS

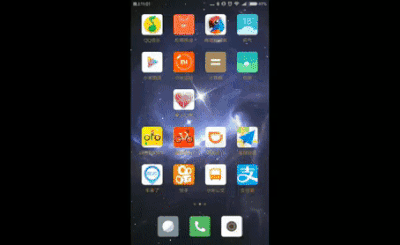

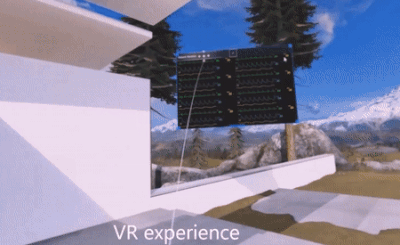

Windows Mixed Reality	Android

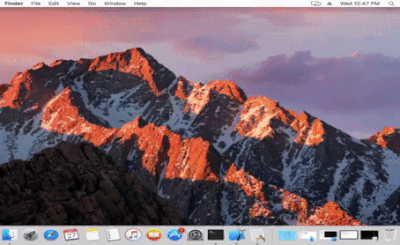

macOS	iOS

We build GuiLite demo as docker image, you can update/deploy/run the latest GuiLite demo on your device with single command below:

sudo docker run -it --privileged -v /dev:/dev-share idea4good/gui-lite:latest bash /run.sh

GuiLite is only a framework, could not create UI by itself. In order to show how to build UI App with it, We provide some samples for you.

Sample name	Platform	Description	Build guidance	Diffculty level

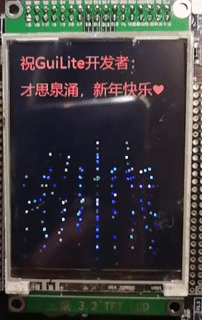

HelloParticle	Windows, Linux, STM32F103, STM32F429	Show how to develop particle effect	Build	★
HelloStar	Windows, Linux, STM32F103, STM32F429	Show how to develop star field effect	Build	★
HelloGuiLite	Windows, Linux	Show how to Initialize UI, load resource, layout UI	Build	★★
HelloWidgets	Windows, Linux	Show how to use GuiLite widgets	Build	★★
HelloMario	Windows, Linux, STM32F103, STM32F429	Show how to develop multi-layer UI system	Build	★★
HelloNavigation	Windows, Linux, STM32F103, STM32F429	Show how to navigate/click widgets by hard button in non-touch GUI scenario	Build	★★

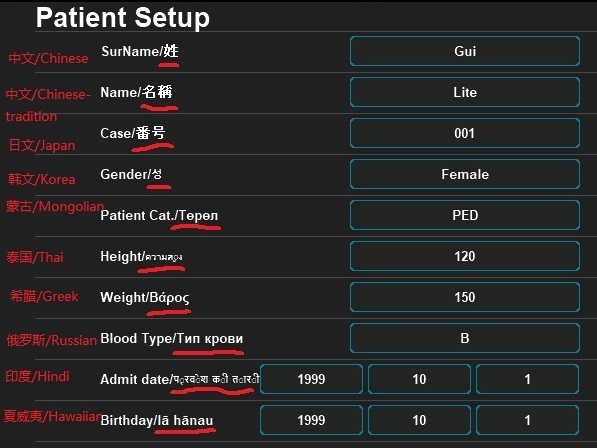

HelloFont	Windows, Linux	Show how to use multi-language feature(UTF-8)	Build	★★
HelloAnimation	Windows, Linux	Show how to make animation	Build	★★
HelloSlide	Windows, Linux	Show how to use sliding pages	Build	★★★

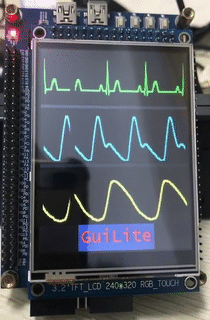

HelloWave	Windows, Linux, STM32F103, STM32F429	Show how to use wave widget	Build	★★★

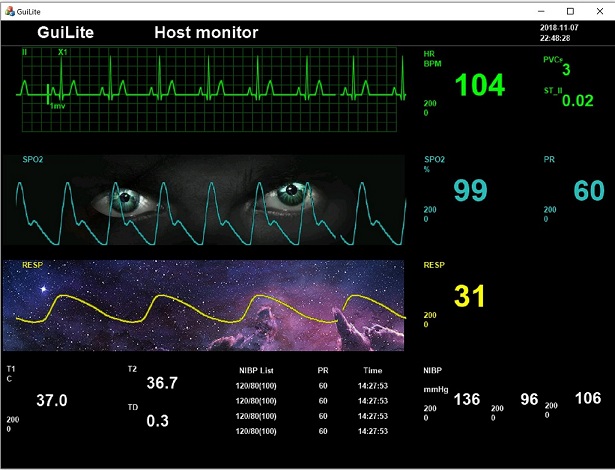

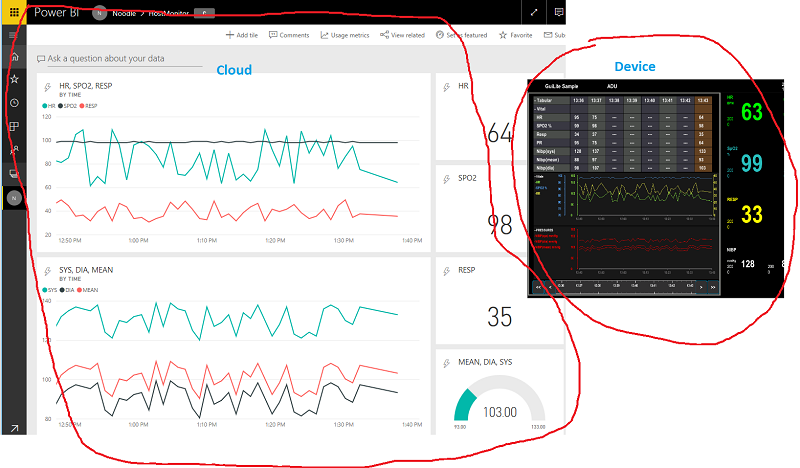

HostMonitor	iOS, Mac, Android, Windows, Linux	Show how to build complex UI for all platforms	Build	★★★★

GuiLite is the smallest and simplest GUI library.
